HPLC columns
- WICOM ProntoSIL C8 SH, 120A, 3µm, 150x4.6mm WIC 6FM4H75$372.58 Bulk price $361.41Excl. VAT, excl. Shipping Cost

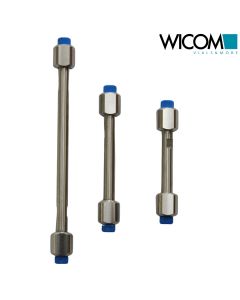

- WICOM UltraSep ES PAH, 5µm, 250 x 3.0mm WIC 6FZZZ83$543.13 Bulk price $466.76Excl. VAT, excl. Shipping Cost
- WICOM Polygosil C18, 5µm, 250 x 4.0mm WIC 6FZ6E84$434.50 Bulk price $427.98Excl. VAT, excl. Shipping Cost
- WICOM HPLC column Repromer Ca 9µm 300x8mm WIC 6FVVU70$1,075.39 Bulk price $952.26Excl. VAT, excl. Shipping Cost
- WICOM Shodex SI-90 4E(PEEK) IC 4,0 x 250 WIC 6FQZU84$1,419.73 Bulk price $1,398.44Excl. VAT, excl. Shipping Cost
- WICOM Shodex SI-52 4E (PEEK) IC 4,0 x 250 WIC 6FQZ284$1,850.97 Bulk price $1,823.21Excl. VAT, excl. Shipping Cost
- WICOM HPLC column ReproSil-Pur 120 ODS-3, 5µm, 150 x 2.0 WIC 6FAJI72$347.60 Bulk price $299.59Excl. VAT, excl. Shipping Cost
- WICOM HPLC column ReproSil Pur ODS-3, 120A, 5µm, 150 x 4mm WIC 6F8RI74$405.17 Bulk price $399.09Excl. VAT, excl. Shipping Cost
- WICOM HPLC column ReproSil C18, 5µm, 100A, 125 x 4.0mm WIC 6F86E64$396.48 Bulk price $283.53Excl. VAT, excl. Shipping Cost
- WICOM HPLC column Nucleosil CN, 100A, 5µm, 200 x 4.0mm WIC 6F79E03$456.23 Bulk price $315.63Excl. VAT, excl. Shipping Cost
- WICOM HPLC column Nucleosil C18, 120A, 5µm, 250 x 4.6mm WIC 6F76I85$414.95 Bulk price $374.48Excl. VAT, excl. Shipping Cost
- WICOM HPLC column Nucleosil C18, 120A, 3µm, 125 x 2.0mm WIC 6F76F62$462.74 Bulk price $419.29Excl. VAT, excl. Shipping Cost
- WICOM HPLC column LiChrospher 60, RP Select B, 5µm, 125x4,0mm WIC 6F5P664$456.23 Bulk price $325.46Excl. VAT, excl. Shipping Cost
- WICOM HPLC column LiChrospher RP-18, 100A, 5µm, 125x4,0mm WIC 6F56E64$432.33 Bulk price $324.63Excl. VAT, excl. Shipping Cost
- WICOM HPLC column Kromasil C18, 100A, 5µm, 250 x 4.6mm WIC 6F4OE85$429.07 Bulk price $347.73Excl. VAT, excl. Shipping Cost
- WICOM HPLC column Kromasil C18, 100A, 5µm, 150 x 4.6mw. WIC 6F4OE75$347.60 Bulk price $291.58Excl. VAT, excl. Shipping Cost
- WICOM HPLC column Kromasil C18, 100A, 3,5µm, 100 x 4.6mm WIC 6F46D55$385.62 Bulk price $324.38Excl. VAT, excl. Shipping Cost
- WICOM HPLC column Kromasil C8, 100A, 5µm, 250 x 4.6mm endc. WIC 6F45E85$412.78 Bulk price $347.60Excl. VAT, excl. Shipping Cost
- WICOM HPLC column Kromasil Si, 60A, 10µm, 100 x 4.6mm WIC 6F41855$323.70 Bulk price $264.90Excl. VAT, excl. Shipping Cost
- WICOM HPLC column Inertsil ODS-3, 5um, 250 x 4,6mm WIC 6F3RE85$649.58 Bulk price $519.63Excl. VAT, excl. Shipping Cost
- WICOM HPLC column Inertsil ODS-2, 150A, 5µm, 250 x 2.1mm WIC 6F3MT82$630.03 Bulk price $532.48Excl. VAT, excl. Shipping Cost
- WICOM HPLC column Inertsil ODS-2, 5µm, 150 x 4,6mm WIC 6F3MT75$381.27 Bulk price $241.14Excl. VAT, excl. Shipping Cost
- WICOM HPLC column Inertsil ODS-2, 150A, 5µm, 125 x 4.0mm WIC 6F3MT64$385.62 Bulk price $335.65Excl. VAT, excl. Shipping Cost
- WICOM HPLC column Inertsil ODS-2, 100A, 5µm, 150 x 4.6mm WIC 6F3ME75$454.05 Bulk price $389.96Excl. VAT, excl. Shipping Cost
- WICOM HPLC column Inertsil ODS-2, 5µm, 250 x 4,6mm WIC 6F3MA85$673.48 Bulk price $556.38Excl. VAT, excl. Shipping Cost
- WICOM HPLC column Inertsil Phenyl, 5µm, 250x4.6mm WIC 6F38E85$640.89 Bulk price $541.33Excl. VAT, excl. Shipping Cost
- WICOM HPLC column Hypersil BDS C18, 5µm, 250 x 4.6mm WIC 6F2KI85$608.30 Bulk price $502.88Excl. VAT, excl. Shipping Cost
- WICOM HPLC column Hypersil BDS C18, 5µm, 150 x 4,6mm WIC 6F2KI75$538.78 Bulk price $451.72Excl. VAT, excl. Shipping Cost
- WICOM HPLC column Hypersil ODS, 5µm, 120A, 250 x 4.0mm endc. WIC 6F2JI84$488.81 Bulk price $449.38Excl. VAT, excl. Shipping Cost
- WICOM HPLC column Hypersil ODS, 5µm, 120A, 250 x 3.0mm endc. WIC 6F2JI83$488.81 Bulk price $449.38Excl. VAT, excl. Shipping Cost
- WICOM HPLC column Hypersil ODS, 5µm, 120A, 250 x 2,1mm WIC 6F2JI82$488.81 Bulk price $438.68Excl. VAT, excl. Shipping Cost
- WICOM HPLC column Hypersil ODS, 5µm, 120A, 125 x 4.6mm endc. WIC 6F2JI65$367.15 Bulk price $301.98Excl. VAT, excl. Shipping Cost
- HPLC column Hypersil ODS, 5µm, 120A, 125 x 4.0mm endc. WIC 6F2JI64$380.19 Bulk price $374.48Excl. VAT, excl. Shipping Cost
- WICOM HPLC column Hypersil ODS, 5µm, 120A, 200 x 4.6mm endc. WIC 6F2JI05$323.70 Bulk price $302.79Excl. VAT, excl. Shipping Cost
- WICOM HPLC column Hypersil ODS, 3µm, 120A, 125 x 4,6mm endc. WIC 6F2JH65$532.26 Bulk price $524.28Excl. VAT, excl. Shipping Cost
- WICOM HPLC column Hypersil 120 ODS, 5µm, 250 x 4.6mm WIC 6F2JE85$476.86 Bulk price $388.88Excl. VAT, excl. Shipping Cost
Components
In addition to an HPLC pump, a mixing chamber, a detector and a sample injector, the HPLC columns are also required to perform the technique. For the mobile phase, a storage vessel and a waste vessel are also used.In our online store you will find a wide selection of robust and durable columns for high performance liquid chromatography (HPLC) for the instruments of various manufacturers and models. These include, for example, Hamilton and Shodex or Inertsil, Hypersil, Kromasil or LiChrospher.
- Suitable column for your method
- Normal phase and reversed phase chromatography
- Material
- Pore and particle size
- SFC columns
- Deviations according to USP
- Assortment and accessories
Suitable column for your method
Columns are now available for a wide variety of chromatography modes. Therefore, it is important to consider both the method and its phases when selecting a suitable HPLC column. For example, there are HPLC columns for normal phase, size exclusion, affinity, reversed phase and ion exchange chromatography. The product types are designed to meet the corresponding requirements of the modes and optimally support you in carrying out your method, because depending on the phase, the columns have different properties (depending on the phase, for example, non-ionic, water-soluble, etc.).
Normal phase and reversed phase chromatography
A distinction is made between normal phase and reversed phase chromatography techniques.
The normal phase (NP) technique was the most common for a long time, which is why the corresponding HPLC columns can also be found in the store from many different manufacturers. Crucial for this methodology is the stationary phase with polar characteristics of the surface as well as the mobile phase with non-polar characteristics. Since many different solvents can be used here, the NP technique is very powerful, but has a disadvantage due to its complexity.
The ratios of polarity are reversed in the reversed-phases (RP) technique as the name suggests. Thus, the stationary phase is now non-polar and the mobile phase is polar. In this process, the nonpolar chains of the RP columns are bonded to a silica gel scaffold or polymer, resulting in hydrophobic properties. Since this process is now the most popular, a range of columns exists from all manufacturers.
Material
Benefit from HPLC columns made of different materials in our store. When choosing the material, you should pay particular attention to the properties of the analyses. Conventional columns of this type usually have the following processing:
- Amino
- C8 or C18
- Cyano
- Diol
- Silica
- Phenyl
The materials currently used are already much more robust and durable than those used in the early days of HPLC in the 1960s. The quality of the stationary phases has been significantly improved.
Pore and particle size
The HPLC columns in our online store have different pore and particle sizes. There are columns with particle sizes from 1.5µm to 60µm. In general, our products have particle sizes of 3µm, 3.5µm, 5µm and 10µm.
The standard pore sizes range from 25A to 1000A. In our store you can get mainly models with pore sizes of 100 A, 120 A, 150 A, 250 A and 300 A.
For products in other sizes, please contact us by e-mail or by phone.
SFC columns
A cost-saving and flexible alternative: the SFC method (SFC = Supercritical Fluid Chromatography or supercritical fluid chromatography) allows environmentally friendly CO2-based separation of substances. Preparative columns with an internal diameter of 10 to 50 mm and different particle sizes are used here, resulting in particularly rapid separation of substances. In addition, the process is particularly inexpensive due to the reduced solvent consumption. Thus, the SFC method offers several advantages over the HPLC technique. Columns for both methods are available for selection in our store
Deviations according to the USP
The USP (Unites States Pharmacopoeia) is one of the most important pharmacopoeias worldwide. And defines fixed standards for the quality of food and drugs. The following deviations are allowed according to the USP:
- Inner diameter of the column: variable, if flow rate is constant
- Length of column: +/- 70%
- Flow rate: +/- 50%
- Size of particles: -50%
- Component ratio (mobile phase): +/- 30%
- ph-value (mobile phase): +/- 0.2
- Temperature of the column: +/- 10 degrees Celsius
- Salt concentration (in buffer): +/- 10%
- Wavelength (UV-Vis detector): +/- 3 nm
- Injection volume: reduction until detection limits are reached
Assortment and accessories
The selection in our online store is large. From HPLC columns with bound phases, ready-to-use columns and products with different pore and particle sizes - you are sure to find what you are looking for here. Before purchasing a product, please make sure that it is compatible with your laboratory equipment (manufacturer and model). In addition to HPLC columns, you will find a high-quality selection of HPLC accessories for laboratory analysis in our store. You will also find what you are looking for if you are looking for spare parts such as hollow cathode lamps, HPLC seals and HPLC valves.
Do you need information and support in choosing the right chemistry accessories or do you have questions about spare parts for an article? Please feel free to contact us.
